*We also proudly offer the Gingway product line of base series melters and sealcoating tools*
SH-MA10
|
The Soft Heat SH- MA10 is the ultimate evolution of the popular Melter/Applicator combination crack sealant machine. It is ideal for all types of crack sealant work. Completely self-contained, it can efficiently melt and apply hot sealants to parking areas, road ways, mill and fill perimeters and traffic control loops. Thanks to the heat sourcing of infrared technology, initial startup and recovery times are less than half that of traditional torch fired units. The virtually even distribution of heat across the burner surface combined with the actual flame never touching the melting pan yields undamaged material at an astonishing rate. Fuel usage is a fraction of traditional units. No more annoying blow-outs means even lower operating cost without the frustration of time lost.
The SH-MA10 now draws from over 30 years of experience in the manufacture and design of melter applicators. This 3rd generation enjoys never seen before innovations. Ease of use and cleaning now make this unit an everyday moneymaker. Simple full agitation removal for thorough cleanouts and our safe lean back feature for banding shoe cleaning make these chores a breeze. Both inner and outer tanks are built of 14 ga. Steel. Standard features include temperature gauge with guards, four 1/4” thick steel wheels for stability, propane bottle platform with quick slap-down tank band (bottle not included), stay cool handle on no splash lid, spring loaded control valve and 3” heavy-weight steel screed with seal-off plate for clean starts and stops. The easily removable hand agitator incorporates a revolutionary block-off plate to seal the material vat from the valve. This allows quick in field servicing of a valve clog. Regulator is self-maximizing to prevent over pressurizing of the burner and hose is 4’ of protective braided stainless steel. Battery powered electronic ignition and back up lighter stick port means you are never stranded with an unsolvable ignition problem. Quality construction by skilled tradesmen in the USA means each unit comes fully assembled to stay fully assembled. This is simply the most productive MA10 built. Specifications: Length – 47”, Width – 27”, Height – 36” Capacity – 10 gal., Weight – 150 lbs. |

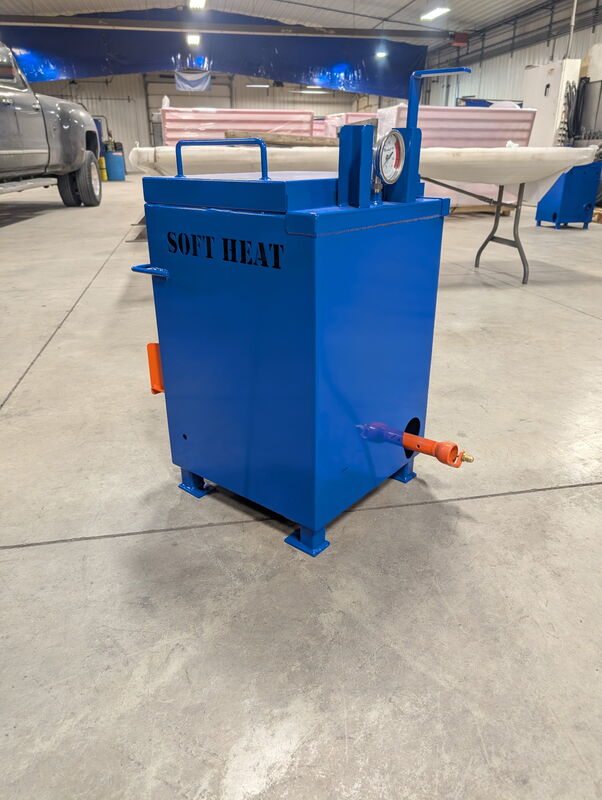

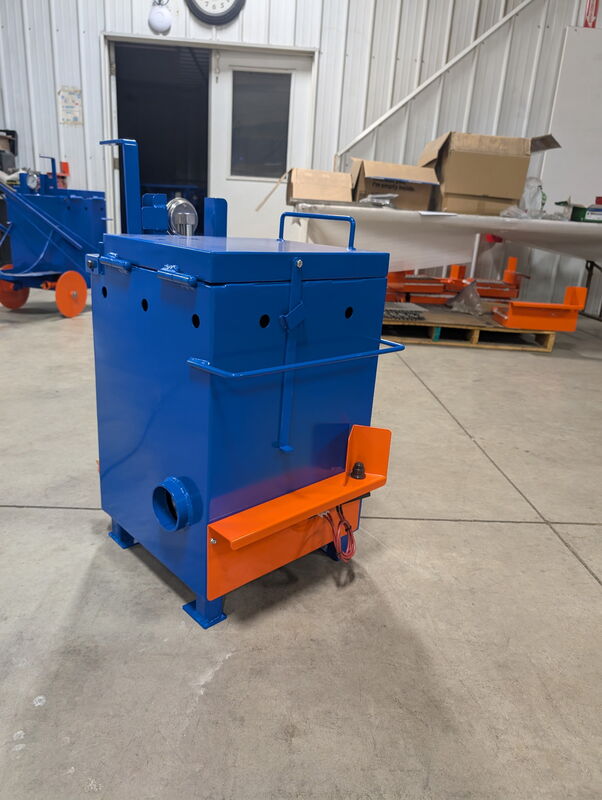

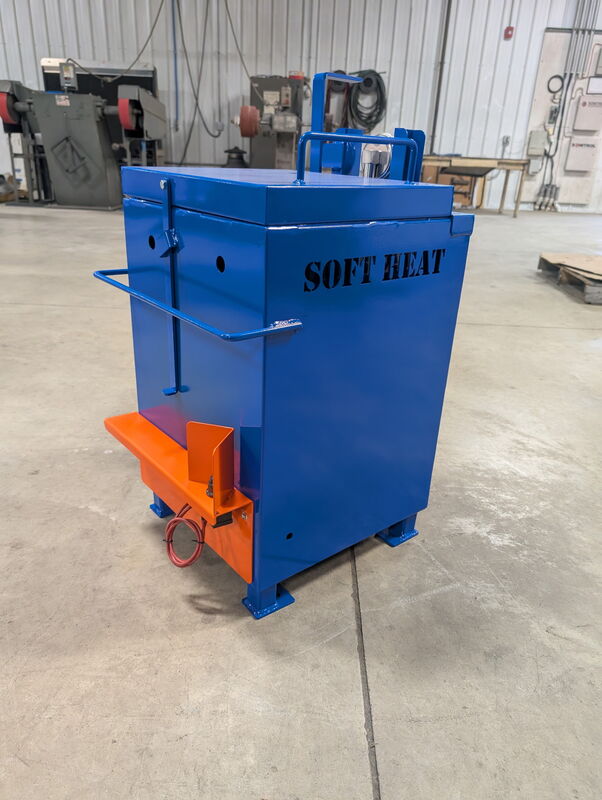

SH-10GAL MINI
|
The Soft Heat SH-10 GAL Mini is the next generation of portable and economic crack sealant melters. It is ideal for small jobs from parking areas to loop sealant applications or mill and fill perimeters. Thanks to its heat sourcing of infrared technology, initial startup and recovery times are less than half that of traditional torch fired units. The virtually even distribution of heat across the burner surface combined with the actual flame never touching the melting pan yields undamaged material at an astonishing rate. Fuel usage is a fraction of traditional units. No more annoying blow-outs means even lower operating cost without the frustration of time lost.
Both inner and outer tanks are built of 14 ga. Steel. Standard features include temperature guage with guards, built in hand agitator, cast draw off valve and a propane bottle platform (bottle not included). Regulator is self-maximizing to prevent over pressurizing of burner and hose is 8’ of protective braided stainless steel wrap. Battery powered electronic ignition and back up lighter stick port means you are never stranded with an unsolvable ignition problem. Quality construction by skilled tradesmen in the USA means each unit comes fully assembled to stay fully assembled. Specifications: Length-29”, Width-30”, Height-32” Cpacity-10 gal., Weight-111 lbs |
SH-30GAL
|
The Soft Heat SH-30 Gal is the next generation of portable crack sealant melters. It is ideal for small to large scale crack sealant jobs on streets or parking areas with melting production rivaling trailer mounted machines. Thanks to its heat sourcing of infrared technology, initial startup and recovery times are less than half that of traditional torch fired units. The virtually even distribution of heat across the burner surface combined with the actual flame never touching the arched material floor yields undamaged hot crack sealants at an astonishing rate. Fuel usage is a fraction of traditional units. No more annoying blow-outs means even lower operating cost without the frustration of time lost.
In warm weather or below freezing temperatures, the massive heating panel on this unit extends the full length of the machine and wraps the entire melting chamber in over 900 degrees of soft, even, reflective heat. Constructed of 14 ga. Steel, standard features include temperature gauge with guard, cast draw of valve, built in hand agitator, self-storing lifting handles, and hinged lid with safety opening handle. Fuel injection takes place safely concealed under the machine. The regulator is self-maximizing to prevent over pressurizing of the burner and hose is 8’ of protective braided stainless steel. Battery powered electronic ignition and back up lighter stick port means you are never stranded with an unsolvable ignition problem. Quality construction by skilled tradesmen in the USA means reliable performance for years. Specifications: Length – 45”, Width – 26”, Height – 46” Capacity 30 Gallon, Weight – 235 lbs. |
SH-55GAL
|
The Soft Heat SH-55 Gal is the next generation of portable crack sealant melters. It is ideal for small to large scale crack sealant jobs on streets or parking areas with melting production rivaling trailer mounted machines. Thanks to its heat sourcing of infrared technology, initial startup and recovery times are less than half that of traditional torch fired units. The virtually even distribution of heat across the burner surface combined with the actual flame never touching the arched material floor yields undamaged hot crack sealants at an astonishing rate. Fuel usage is a fraction of traditional units. No more annoying blow-outs means even lower operating cost without the frustration of time lost.
In warm weather or below freezing temperatures, the massive heating panel on this unit extends the full length of the machine and wraps the entire melting chamber in over 900 degrees of soft, even, reflective heat. Constructed of 14 ga. Steel, standard features include temperature gauge with guard, cast draw of valve, built in hand agitator, self-storing lifting handles, and hinged lid with safety opening handle. Fuel injection takes place safely concealed under the machine. The regulator is self-maximizing to prevent over pressurizing of the burner and hose is 8’ of protective braided stainless steel. Battery powered electronic ignition and back up lighter stick port means you are never stranded with an unsolvable ignition problem. Quality construction by skilled tradesmen in the USA means reliable performance for years. Specifications: Length – 49”, Width – 30”, Height – 51” Capacity – 55 gallon, Weight – 290 lbs. |
SH-10 RETRO-FIT BURNER
|
The SH-10 retro-fit burner is specifically designed to replace the conventional torch type burner supplied with most U.S. Built MA10 melter/applicators and 10 gal. mini melters. It is also usable in some Chinese built “knock-off” units utilizing a torch type burner (check your unit dimensions for fitment). Simple sheet metal modifications to the front and rear of the outer sheet metal surfaces are required for installation. Torch valve, hose and regulator are retained after a simple orifice exchange. Units receiving the properly installed modification will yield initial melting and recovery speeds equaling that of factory Soft Heat machines, No more torch assembly to loose and no more blow-outs (metal integrity and a melting chamber free of burnt or charred material is critical in selecting a unit for modification) This modification kit presents a cost effective way to experience the revolutionary performance and fuel savings of the next generation crack sealant machines that are Soft Heat.
Specifications: Length – 17”, Width – 15”, Height – 7” Weight – 17 lbs. |
SH-30 RETRO-FIT BURNER
|
The SH-30 retro-fit burner is specifically designed to replace the conventional torch type burner supplied with most U.S. Built 30 gallon direct fired melters manufactured through the last decade. It is also usable in some Chinese built “knock-off” units utilizing a torch type burner (check your unit dimensions for fitment). Simple sheet metal modifications to the torch entry side and bottom of the outer sheet metal surfaces are required for installation. Torch valve, hose and regulator are retained after a simple extension tube and orifice exchange is installed. Units receiving the properly installed modification will yield initial melting and recovery speeds equaling that of factory Soft Heat machines. No more torch assembly to loose and no more blow-outs (metal integrity and a melting chamber free of burnt or charred material is critical in selecting a unit for modification) This update kit presents a cost effective way to experience the revolutionary performance and fuel savings of the next generation crack sealant machines that are Soft Heat.
Specifications: Length – 45”, Width – 16”, Height – 7” Weight – 42 lbs |
SH-55 RETRO-FIT BURNER
|
The SH-55 retro-fit burner is specifically designed to replace the conventional torch type burner supplied with most U.S. built 55 gallon direct fired melters manufactured through the last decade. It is also usable in some Chinese built “knock-off” units utilizing a torch type burner (check your unit dimensions for fitment). Simple sheet metal modifications to the torch entry side and bottom of the outer sheet metal surfaces are required for installation. Torch valve, hose and regulator are retained after a simple extension tube and orifice exchange is installed. Units receiving the properly installed modification will yield initial melting and recovery speeds equaling that of factory Soft Heat machines. No torch assembly to loose and no more blow-outs (metal integrity and a melting chamber free of burnt or charred material is critical in selecting a unit for modification). This modification kit presents a cost effective way to experience the revolutionary performance and fuel savings of the next generation crack sealant machines that are Soft Heat.
Specifications: Length – 48”,Width – 16”, Height – 7” Weight – 48 lbs. |
